Application Scenarios
In the field of laser cutting, when performing cutting with a small radius of curvature at the laser focus, if the pulse energy, pulse repetition frequency, or average laser power of the laser is dynamically adjusted so that the corresponding laser parameters change with the movement speed of the laser focus, this can greatly improve the effect of laser cutting. This card can perfectly solve this problem.
Product Introduction
RS232 serial port communication, simple and fast.
Two encoder inputs, matching interpolation mixed motion of circles and squares.
Maximum 6.5MHz encoder acquisition frequency, faster speed and higher precision.

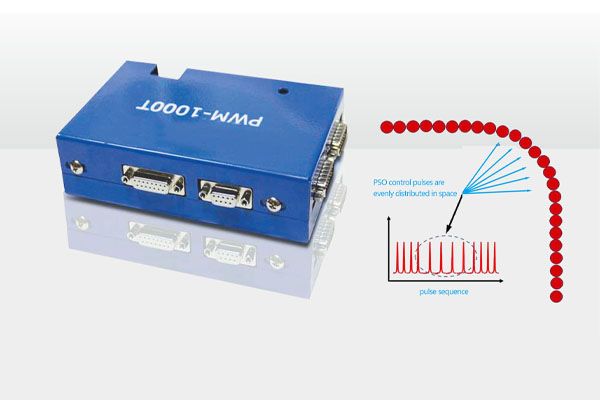

Supports pulse synchronous output (PSO), used for energy control in the laser industry, ensuring consistent cutting quality during acceleration, deceleration, and uniform speed sections.
Supports 5V/24V PWM signal output.
16bit ±10V DAC analog output, matching lasers with voltage-controlled laser power.
Programmable design, can be embedded in existing cutting software.
Can be externally set with software and can be embedded in existing cutting systems.
Small volume, easy to install, and anti-interference.
Typical Application Fields of the Product
CO2 laser cutting machines (for cutting films, membranes, etc.), ceramic cutting machines, steel plate/sheet metal cutting machines.
Fiber laser cutting and scribing.
