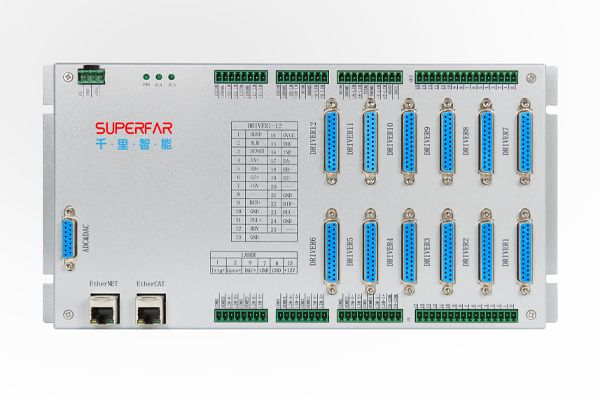

12-axis motion controller (QLC-1220)

Product Introduction

• 1. Motion Control Characteristics

• It supports 12-axis analog quantity, pulse direction control or EtherCAT bus control, and can directly control drivers and IO modules through the bus. The improved S-curve acceleration and deceleration algorithm and look-ahead control make the machine tool speed faster and more stable. The high-precision interpolation algorithm is designed for high-precision equipment.

• 2. Fast Computing Speed

• The QLC-1220 control platform adopts a digital processing unit with super computing power and an extremely short servo cycle, which is suitable for high-speed and high-precision digital motion control.

• 3. Support EtherCAT Interface

• The wiring is convenient, easy to expand, resistant to interference, and stable.

• 4. Ethernet Port Communication

• It uses 1000M Ethernet communication with the upper computer, which is fast and stable. There is no need to install driver programs. The control system operates independently and is not affected by industrial computer failures, making the operation of machine tool equipment systems more stable.

• 5. Other Features

• It has a small volume, convenient installation, and is resistant to interference, suitable for the control of automation equipment. It also has powerful online analysis and debugging software, making machine adjustment easy.

Typical Application Fields of the Product

.
