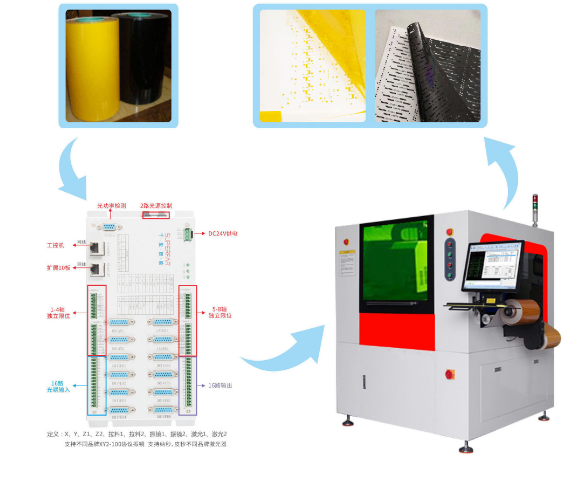

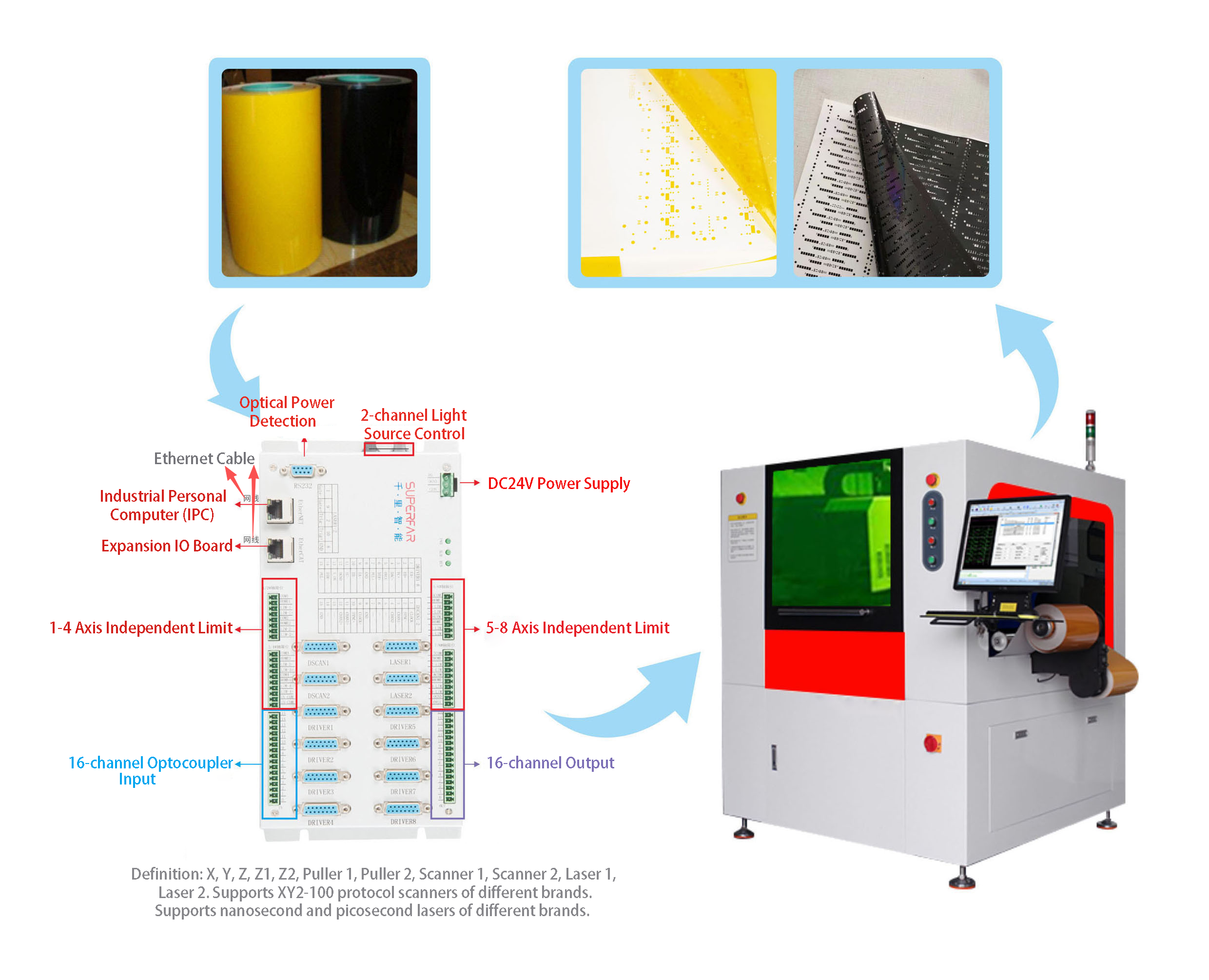

System Overview

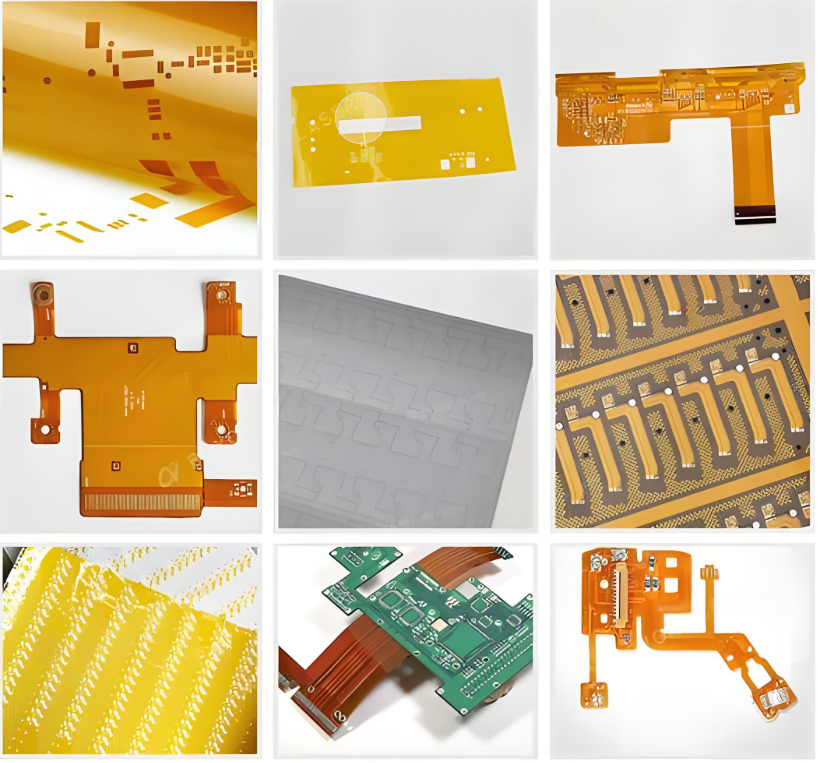

The SuperFar Intelligent LaserLS Dual-Headed Fully Automatic Roll-to-Roll/Sheet Cutting System integrates platform motion control and galvanometer scanning into a unified solution. A single control card achieves precise laser processing control for platform movement, galvanometer scanning, vision positioning, and automatic cutting, enabling high-precision positioning and cutting. It is currently widely used in industries such as PCB and FPCB cutting, including applications like FPC cover film roll-to-roll and sheet, FPC cover film roll-to-roll, FPC outline cutting, FPC flexible boards, cover films, PET films, PI films, PP films, adhesive films, copper foil, explosion-proof films, electromagnetic shielding films, and other auxiliary circuit board materials. The system also supports FPC outline cutting.
System Architecture
The LaserLS software, paired with the QLS-821/822 eight-axis platform galvanometer synchronization card, supports eight axes with dual/single galvanometer and dual/single laser control. Dual galvanometers enable synchronous or asynchronous processing and are compatible with stepper/servo/linear motors. Enhanced S-curve acceleration/deceleration algorithms and look-ahead control ensure faster and smoother machine speed transitions, delivering high precision, high efficiency, and large-format processing. It is primarily used for processing copper foil, aluminum foil, FPC flexible boards, and various film materials in roll-to-sheet and roll-to-roll cutting applications.
Software

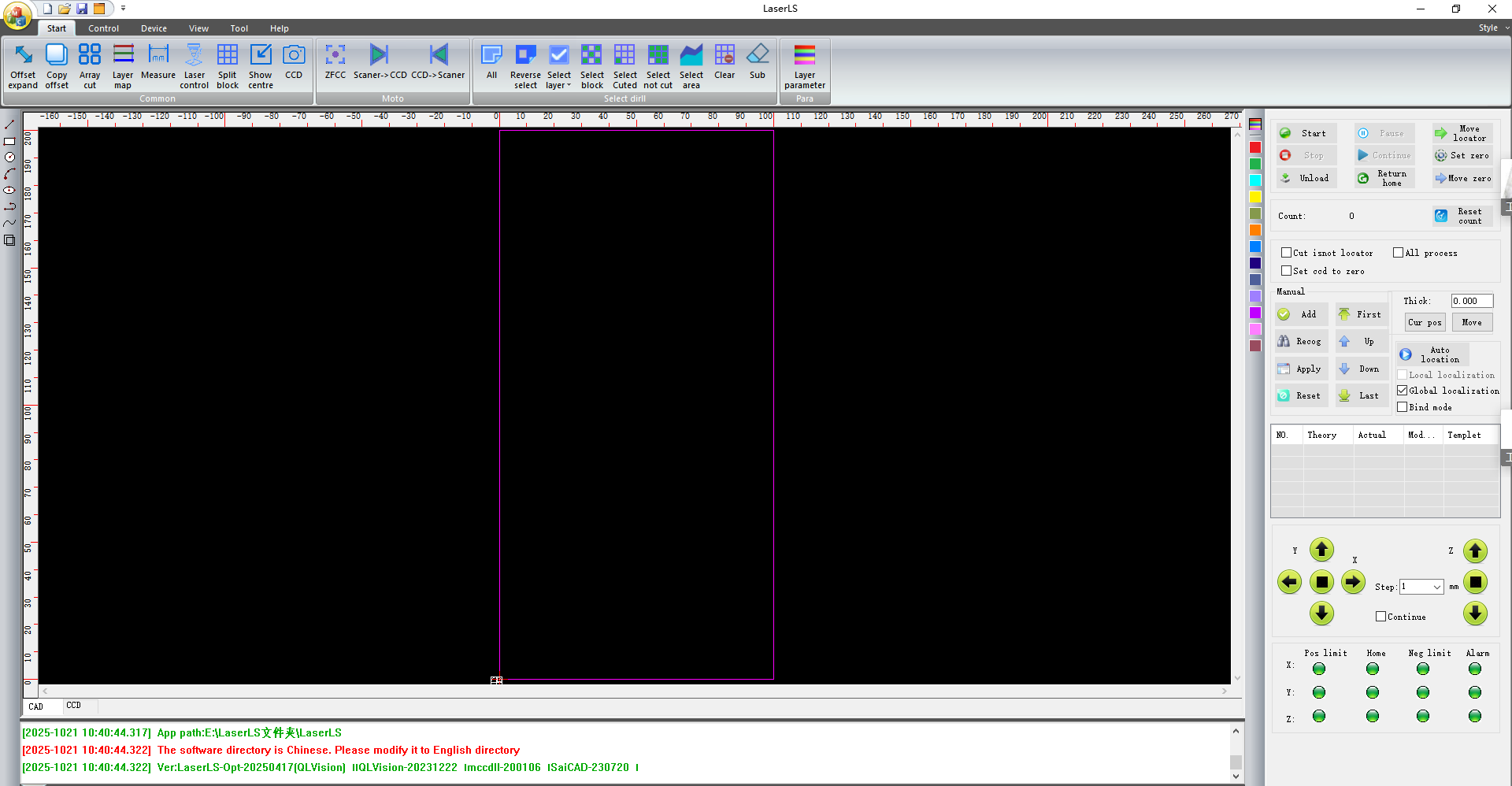

LaserLS Software
Advantage
Technical Module | Innovation Design Highlights |
2D Flying Cutting | Integrated platform motion and galvanometer scanning enable 3/4-axis linkage for 2D dynamic processing, significantly improving machining efficiency. |
Infinite working range | Combines platform and galvanometer coordination for seamless processing without splicing marks, offering unrestricted machining area. |
Dual Galvo control | Supports synchronous or asynchronous visual automatic cutting control with dual galvanometers and platform coordination. |
Control Features | Enhanced S-curve acceleration/deceleration algorithms with look-ahead control optimize machine stability and motion performance. |
Visual Position | Utilizes visual positioning for accurate processing and automatic galvanometer calibration. |
Secondary Development | Allows customization and provides SDK and tailored solutions for industry-specific needs. |
Hardware

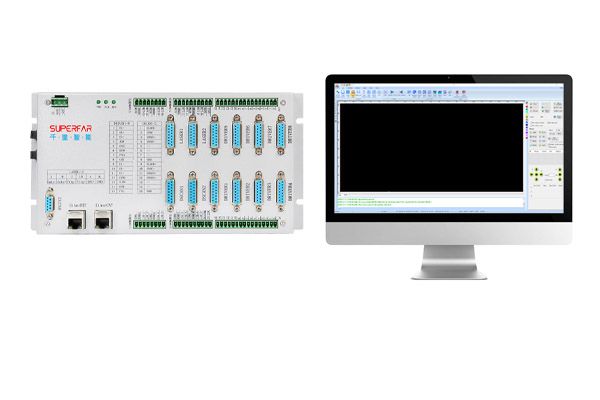

Platform galvo linkage controller QLS-821/822
Category | Description |
Control Features | - Achieves 8 axis synchronization between platform movement and galvanometer scanning - Integrates motor axis motion and galvanometer control into a unified system, Simplifies equipment integration - Reduces costs while enhancing performance. |
Computational Performance | - Equipped with a high-performance digital processing unit (QLS-821/822 platforms) - Ultra-short servo cycles for high-speed precision control. |
Communication Capabilities | - EtherNET 1000M Ethernet communication - Independent operating system |
EtherCAT Interface | - Simplified wiring, exceptional scalability, anti-interference performance |
Data Storage | - Large-capacity memory architecture supporting high-speed data throughput applications |
Core Features | - Supports 4axis and dual/single galvanometer and dual/single laser - Dual galvanometer enables synchronous or asynchronous processing - Compatible with stepper/servo/linear motors - Enhanced S-curve acceleration/deceleration and look-ahead control for machine stability- Vector and bitmap processing - XY2-10 protocol and 16-bit resolution control signals - 5V TTL Gate/Trigger laser signal synchronization - Fully independent intellectual property, perfect Galvo control solutions. |
Application | FPC/PCB cutting, Mobile camera module cutting,Fingerprint recognition module cutting,Memory card & TF card cutting,ITO film etching,Large-format marking,FPC cover film roll-to-piece and roll-to-roll cutting |
