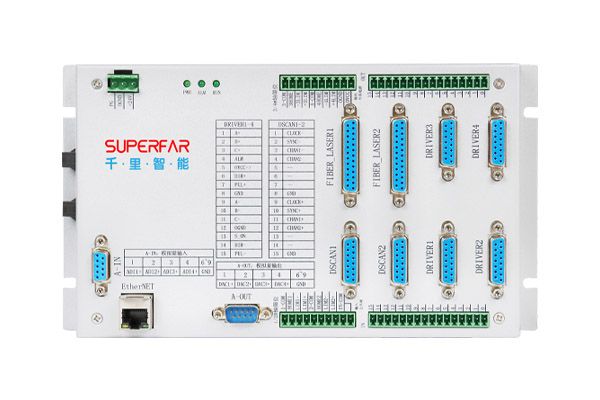

LaserLS + QLS-421 Precision Linkage Control System

Product Introduction

1. Integration of platform galvanometer control function

In many occasions, the high speed and high precision requirements of galvanometer processing need to be supported by large-format platforms, making the combination of galvanometer scanning and platform movement a mainstream direction for laser micromachining equipment. The QLS-421/422 can conduct platform motion control and galvanometer scanning control simultaneously to achieve three-/four-axis linkage. It is a fully digital control system specially provided for customers in the laser industry, which can control motor movement and galvanometer scanning at the same time. It combines the two functions into one, with perfect unified coordination performance, reducing equipment costs, improving equipment performance and simplifying equipment integration.

2. Fast calculation speed

The digital processing unit adopted by the QLS-421/422 control platform has super computing power and an extremely short servo loop cycle, which is suitable for high-speed and high-precision digital motion control.

3. Ethernet port communication

It adopts 100/1000M Ethernet, with fast and stable communication. There is no need to install driver programs. The control system can operate independently and will not be affected by the failure of the industrial computer, making the operation of the machine tool equipment system more stable.

4. Large data storage capacity

The QLS-421/422 is configured with relatively large memory and can process large amounts of data at a time. It is very suitable for high-speed and high-precision motion control with large data throughput.

Main Applications:

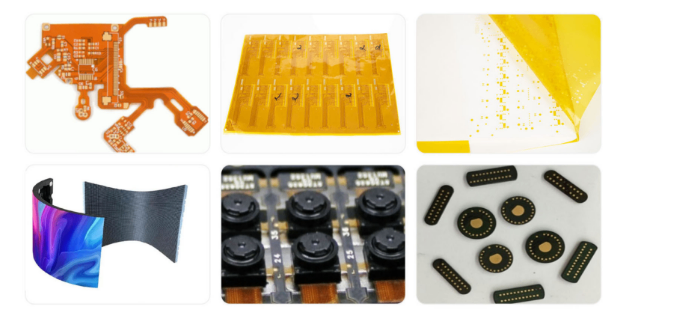

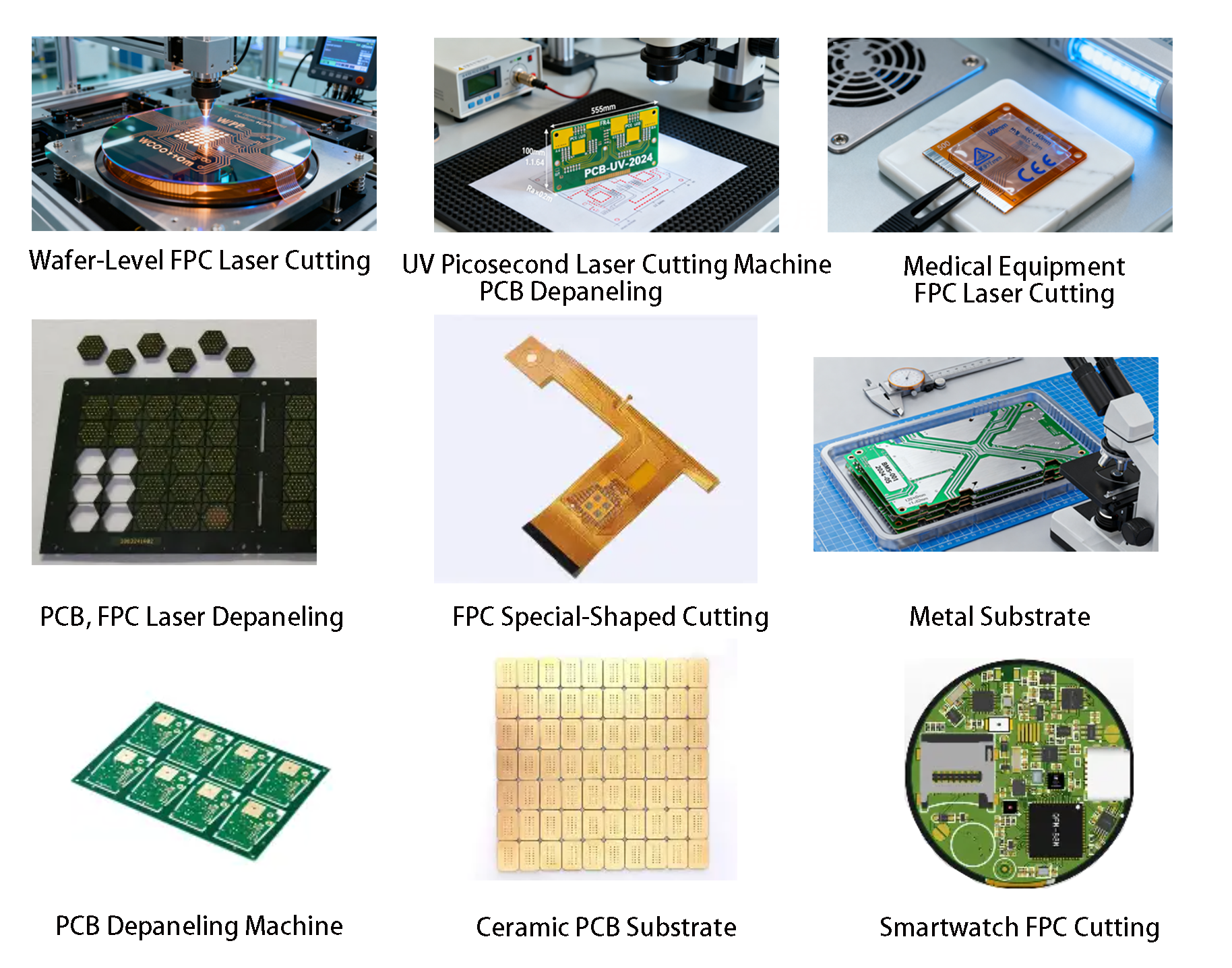

FPC/PCB cutting, cutting of mobile phone camera module, cutting of fingerprint recognition module, cutting of flexible screen, cutting of memory card,

ITO engraving, large-area marking, FPC cover film roll-to-sheet, FPC cover film roll-to-roll alignment, etc.
